Delta 160M (Ø 32 ÷ 160 mm)

Delta 160M (Ø 32 ÷ 160 mm)

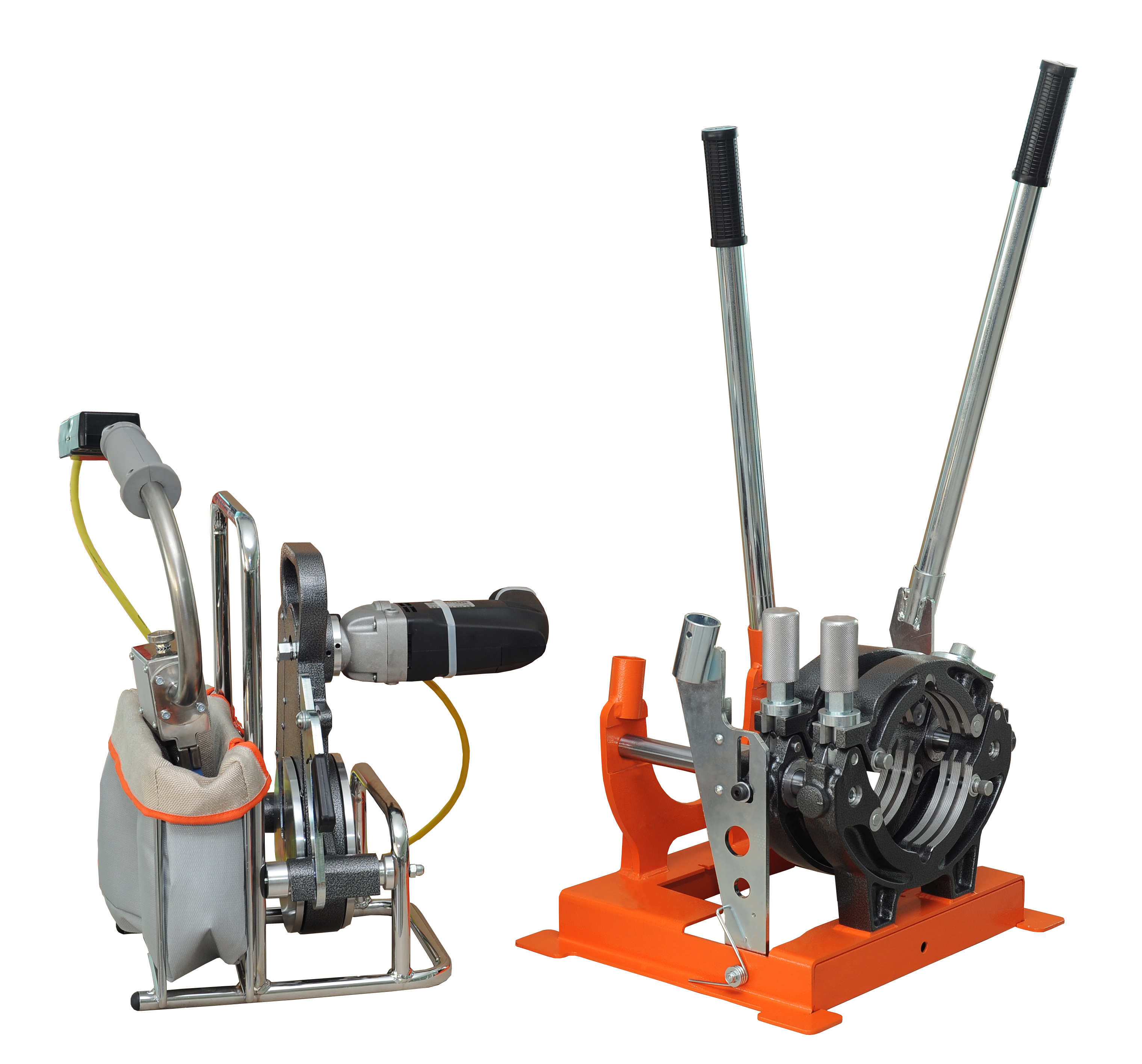

DELTA 160 M is a manual butt fusion welding machine used for pipes up to Ø 160 mm.
Leading particulars are the restricted weight, minimum overall dimensions and versatility.

Featuring: a machine body, two clamps, an extractable electric milling cutter provided with a safety micro-switch, heating plate that can be extracted (with an independent thermometer to see the real working temperature and an electronic thermo-regulator “Digital Dragon” with display), and two lateral supports on request.

DELTA 160 M has a  locking device clamps – aligner RITMO Patented, that helps the operator to apply the needed welding force. The welder is equipped with a clamp-aligner system patented by Ritmo, allowing application of the correct welding force by the operator
The Digital Dragon is an high precision electronic thermo-regulator (± 1° C accuracy) with digital display and regulating buttons. This new system contains Led indicators that help check if the machine is working normally (live tension and working temperature), as well as contingent analysis failures and/or temperature irregularities.


– Clamps’ inserts from Ø 32 to 140 mm
– Lateral support
– Trolley for machine transportation and support
– Rollers


Technical features:

Materials HDPE/PP
Working range Ø 32 ÷ 160 mm
Power supply 110 V – 230 V Single phase 50/60 Hz
Total absorbed power 2020 W (110 V) – 1600 W (230 V)
Working temperature 180° ÷ 280° C
Outside temperature range -10° ÷ 40° C
Weight standard composition 35 Kg
Dimension 450x384x830 mm
