HDPE Welding Guns

HDPE Welding Guns

MUNSCH PARTNERSHIP

Hebeish for Engineering Works, a subsidiary of Hebeish Group, is the sole agent for Munsch, HDPE welding guns in Egypt.

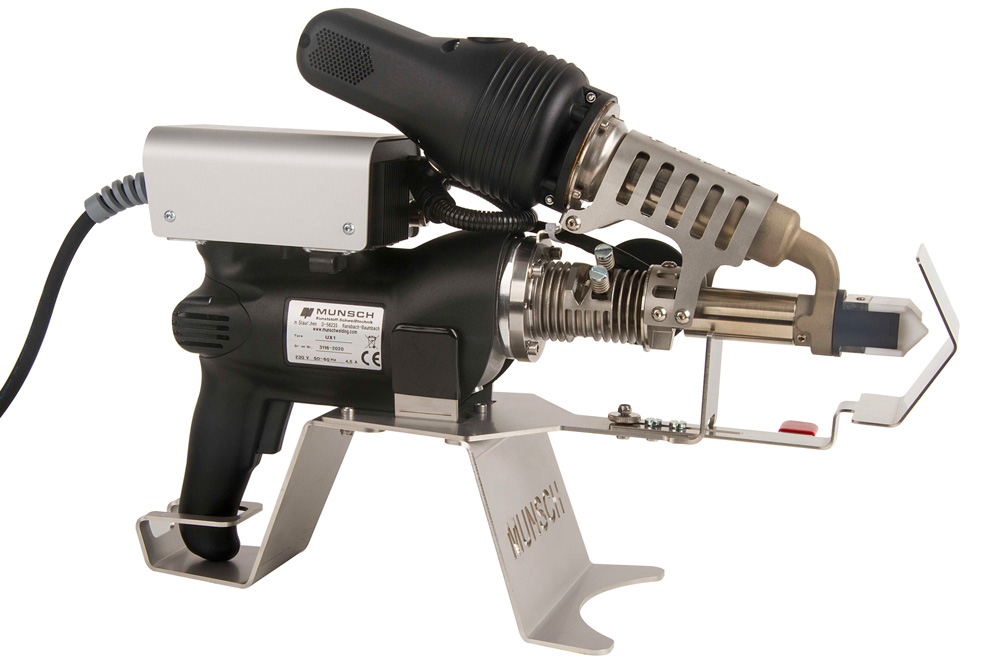

MAK – 18

Small, powerful, variable. With this digitally controlled extruder you can easily weld 15mm sheet thickness, or even 20mm sheet thickness. With the 360° turnable welding shoe you merely enter each corner and the blower can be mounted in 3 different positions (right, top, left).

Advantages

  • Brushless preheating blower
  • Comfortable user menu with automatic temperature setting
  • Four materials preset, more program spaces free to set your own material
  • 360° turnable welding shoe
  • Machine stand included

Technical Data

Max. welding capacity: 1.8 kg/h, Ø 4mm

1.1 kg/h, Ø 3 mm

Welding material: PP / PE / PVDF
Material type: Round rod Ø 3 / 4 mm
Application range: Thicknesses from 4 – 15 mm
Weight: 5.5 kg
Length: 470 mm
Electronic Speed control: yes
Mass heating: 400 W
Powerbox needed: No
Preheating: 2300 W

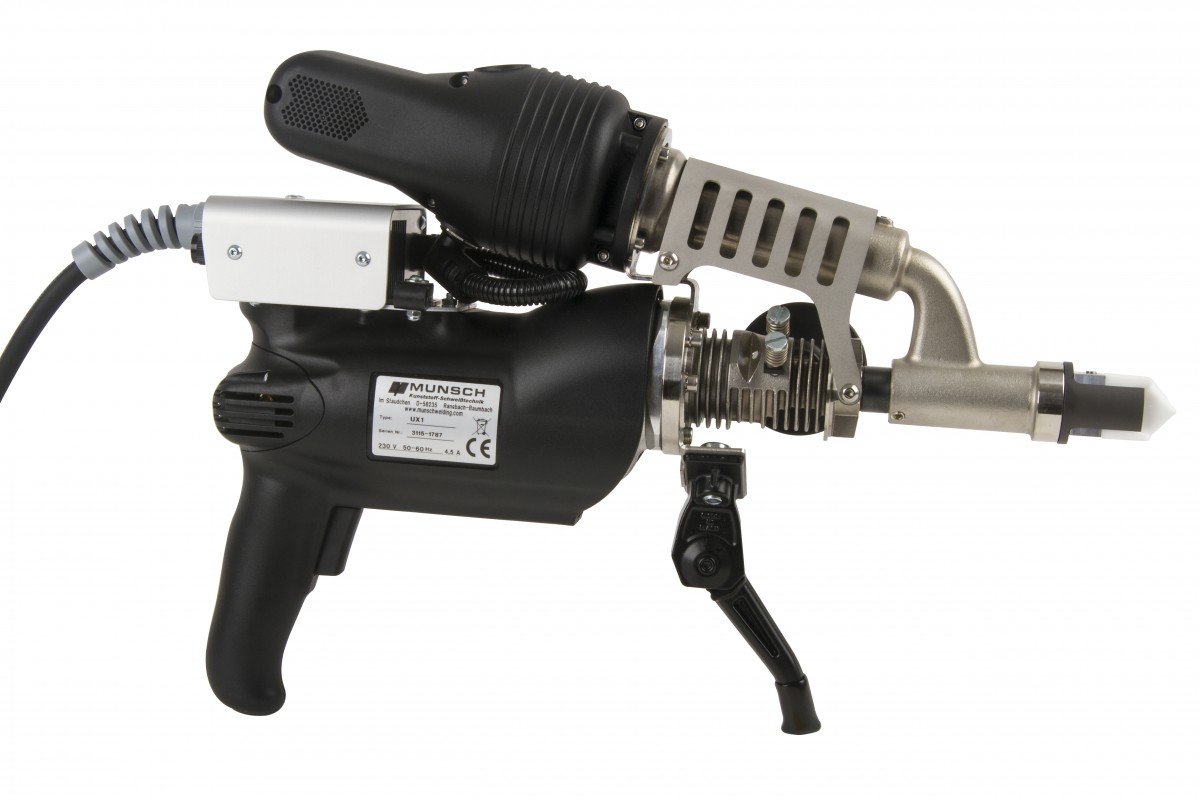

MAK 18-S

Small, powerful, variable. With this digitally controlled extruder you can easily weld 15mm sheet thickness, or even 20mm sheet thickness. With the 360° turnable welding shoe you merely enter each corner and the blower can be mounted in 3 different positions (right, top, left).

Advantages

  • Brushless preheating blower
  • Simple setting of temperature and speed by turnable knobs
  • 360° turnable welding shoe
  • Retractable machine stand included

Technical Data

Max. welding capacity: 1.8 kg/h, Ø 4mm

1.1 kg/h, Ø 3 mm

Welding material: PP / PE / PVDF
Material type: Round rod Ø 3 / 4 mm
Application range: Thicknesses from 4 – 15 mm
Weight: 5.5 kg
Length: 470 mm
Electronic Speed control: Yes
Powerbox needed: No
Preheating: 2300 W

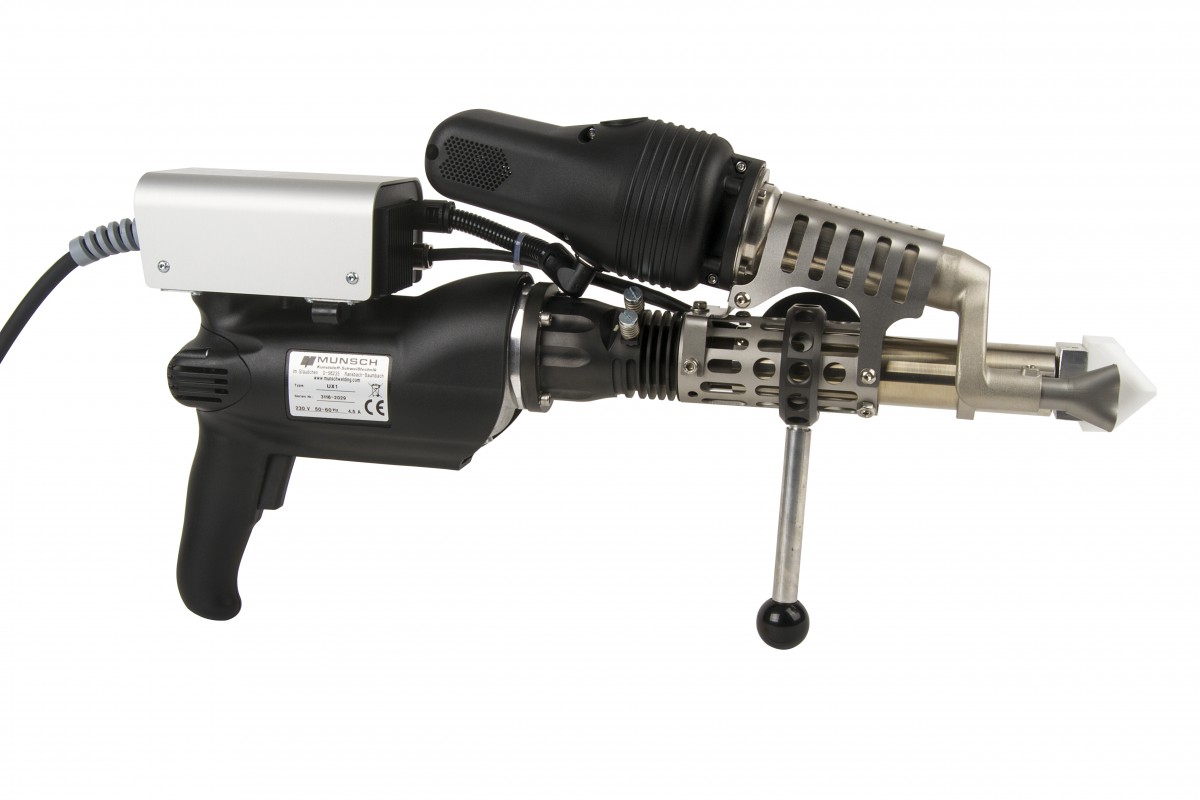

MAK 32-B

This extruder is with 7.6kg weight and 3.2kg/h welding capacity the most powerful machine of the extruders below 8kg.

Advantages

  • Brushless Autoairblower
  • Digital control, separately for melt and preheating
  • Comfortable menu guide with automatic temperature presetting
  • Three materials preset, more program spaces free to set your own material
  • 180° turnable handgrip (also usable for lefthanders)

Technical Data

Max. welding capacity: 1.8 kg/h, Ø 3mm

3.2 kg/h, Ø 4 mm

Welding material: PP / PE / PVDF
Material type: Round rod Ø 3 / 4 mm
Application range: Thicknesses 8 – 25 mm
Weight: 7.6 kg
Length: 570 mm
Electronic Speed control: Electronic, on the controller
Mass heating: 650 W
Powerbox needed: No
Preheating: 2300 W

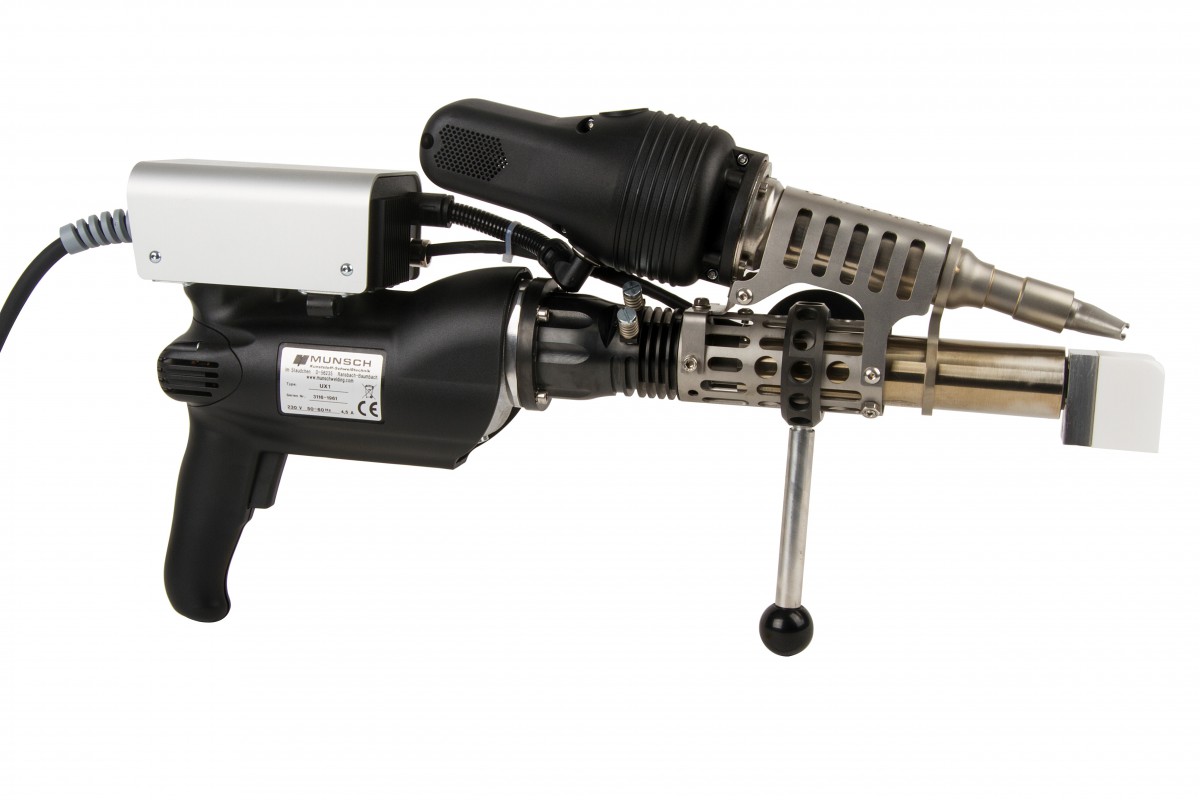

MAK 32-S

This extruder is with 7.6kg weight and 3.2kg/h welding capacity the most powerful machine of the extruders below 8kg.

Advantages

  • Brushless Autoairblower
  • 360° turnable welding shoe
  • 180° turnable handgrip (also usable for lefthanders)

Technical Data

Max. welding capacity: 1.8 kg/h, Ø 3mm

3.2 kg/h, Ø 4 mm

Welding material: PP / PE / PVDF
Material type: Round rod Ø 3 / 4 mm
Application range: Thicknesses 8 – 25 mm
Weight: 7.6 kg
Length: 570 mm
Electronic Speed control: Via turnable knobs
Mass heating: 650 W
Powerbox needed: No
Preheating: 2300 W
