Delta 630 Easy Life

Delta 630 Easy Life

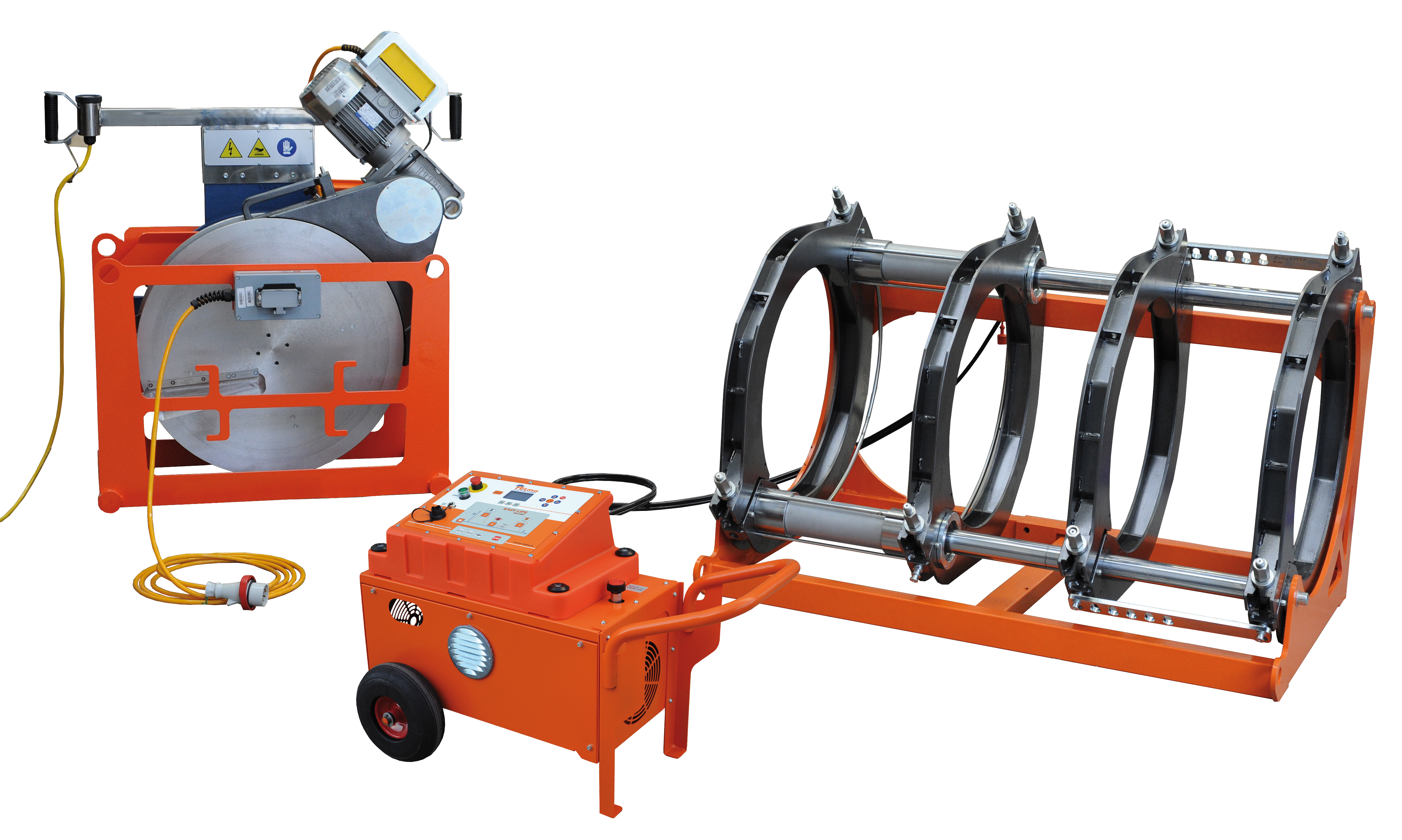

The DELTA 630 EASY LIFE version has a useful trolley, easily controllable with its hand grip.

Product Features:
– A machine body with a steel bearing frame
– Clamps in steel
– Insert in steel with quick locking/unlocking system. No tools required
– Self detaching device: helps removing the heating plate during welding procedure
– A heating plate with separate thermometer for reading the working temperature, that can be extracted
– An electric milling cutter with a safety microswitch and overload cutout, that can be extracted
– Milling cutter’s plastic control box is protected by a metal frame
– Unlocking Milling Cutter, fast removing system to speed up the extraction from machine body
– An electrohydraulic gearcase EASY LIFE
– Digital electric connections box with the high precision (± 1°C) “Digital Dragon” temperature controller
– A milling cutter/heating plate support


Technical features:

Working range Ø 280 ÷ 630 mm
Power supply 230 Three phase 50/60 Hz: 400 V Three phase 50/60 Hz
Total absorbed power 12350 W
Absorbed power gearcase 1500 W
Memory 4000 reports
Working temperature 180° ÷ 280° C
Pressure working range 0 ÷ 150 bar
Weight only body machine 415 Kg
Weight gearcase 50 Kg
Dimension body machine 1550x1010x1000 mm
Dimension gearcase 1000x580x680 mm
