MUSTANG 315 160 V1 ( Ø 32 to Ø 160 mm)

  MUSTANG 315 160 V1 ( Ø 32 to Ø 160 mm)


This electro-fusion machine is suitable for welding electro-fusion fittings in HDPE from Ø 32 to Ø 160 mm, for low-pressure pipes. MUSTANG 160 V1 detects connection to the fitting to be welded automatically and compensates current supplied according to ambient temperature.

The machine is able to recognize any malfunction that could occur before or during welding procedures. MUSTANG 160 V1 complies to the current safety standards and Directives, having a light weight structure which makes it easier to be transported from on place to another..

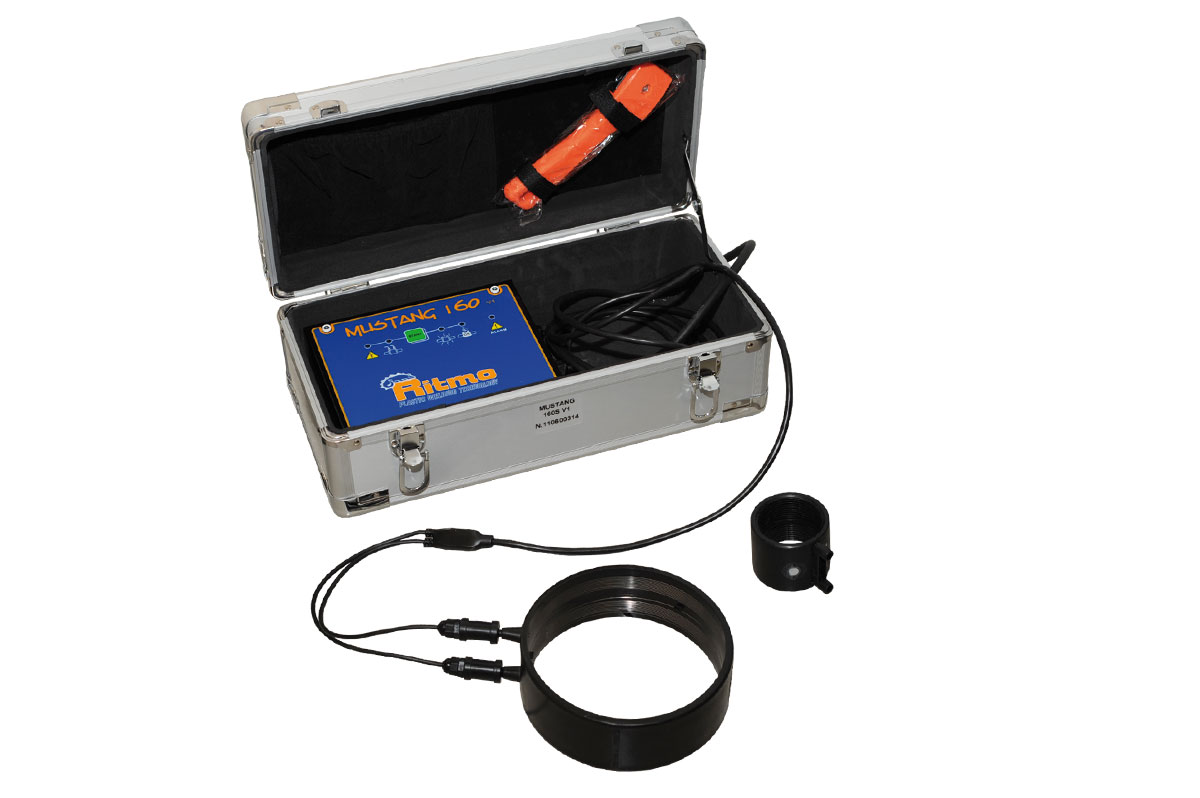

– Mustang 160 V1
– Cables with pins
– Transport case
– Manual scraper


Materials HDPE – low pressure
Working range Ø 32 ÷ 160 mm
Electrical couplers brands  Akatherm-Euro
Geberit, Valsir
Coes, Waviduo
Power supply 230 V single phase 50/60 Hz
110 V single phase 50/60 Hz
Total abdorbed power 1000 W
Output 4,9 A
Ambient temperature probe Electronic
Protection degree IP 54
Dimensions machine 75 x 180 x 230 mm (230 V)
Dimensions carrying case  220 x 450 x180 mm (230 V)
Weight machine 2,5 Kg (230 V)
Weight machine and carrying case 5 Kg (230 V)
