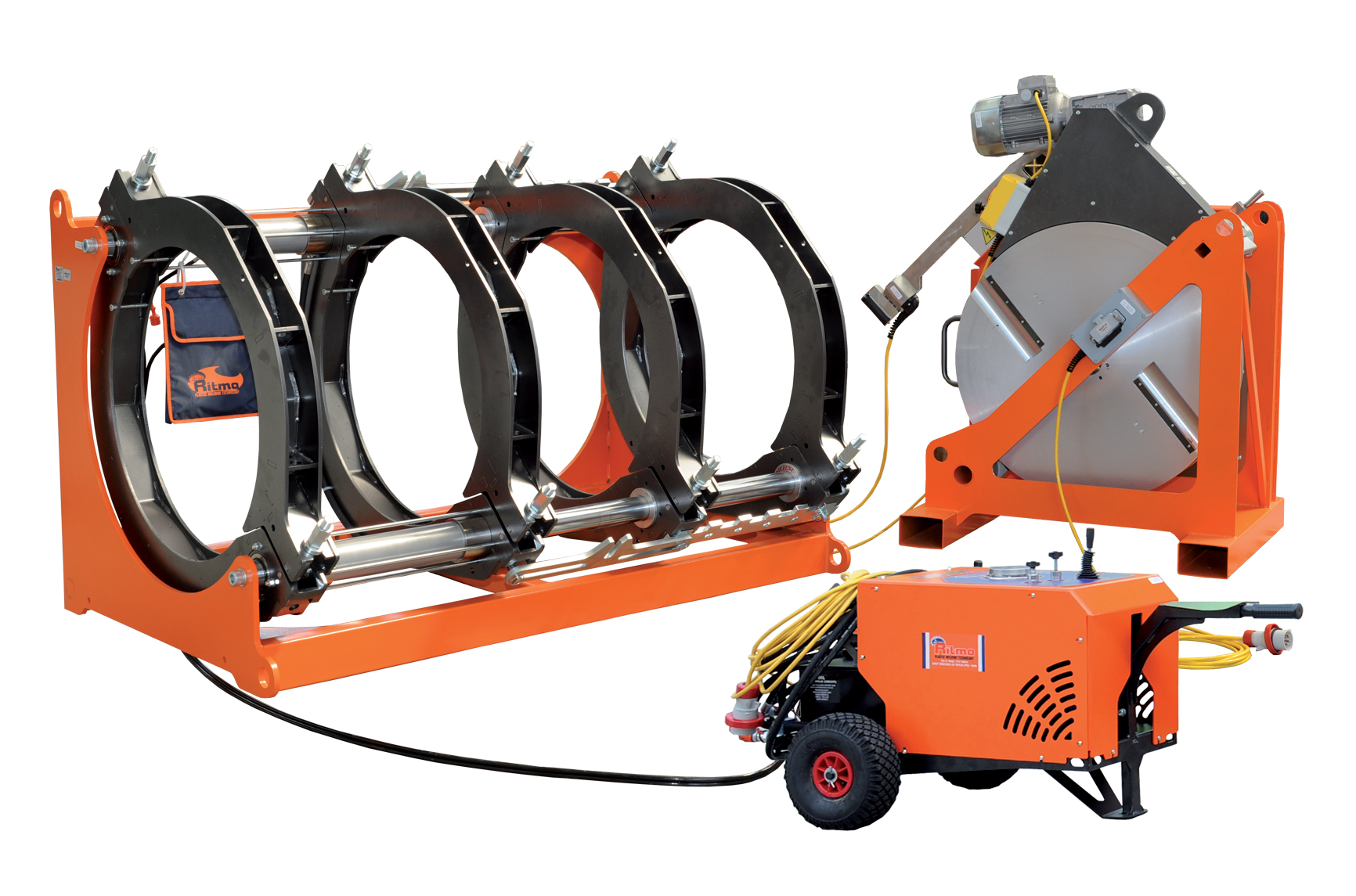

Delta 800 (Ø 500 ÷ 800 mm)

Delta 800 (Ø 500 ÷ 800 mm)

With DELTA 800 it is possible to weld various fittings including elbows, tees, wyes and stub ends. The 3rd clamp can be anchored to the 1st and 2nd (movable) and slide along with the pipe, while the fitting has to be locked in the 4th clamp. Short neck stub ends can be welded with the aid of a special tool (on request).
Available in 230 V and 400 V.


Product features:

– A machine body with a steel bearing frame
– Self detaching device: helps removing the heating plate during welding procedure
– A heating plate, with separate thermometer for reading the working temperature, that can be extracted
– An electric milling cutter, with a safety microswitch and overload cutout, that can be extracted
– An electrohydraulic gearcase
– Digital electric connections box with the temperature controller
– A milling cutter/heating plate support


– Clamps’ inserts from Ø 500 to 710 mm

– Tool for flange necks
– Electrical crane
– Special transport wooden case (machine body with trolley)
– Wooden case for inserts
– Machine body trolley
– Data-logging THE INSPECTOR
– Rollers


Technical features:

Materials HDPE/PB/PVDF
Working range Ø 500 ÷ 800 mm
Power supply 400 V Three phase 50/60 Hz
Total absorbed power 16500 W
Working temperature 180° ÷ 280° C
Pressure working range 0 ÷ 150 bar
Weight only body machines   821 Kg
Dimension  2100x1350x1300 mm
