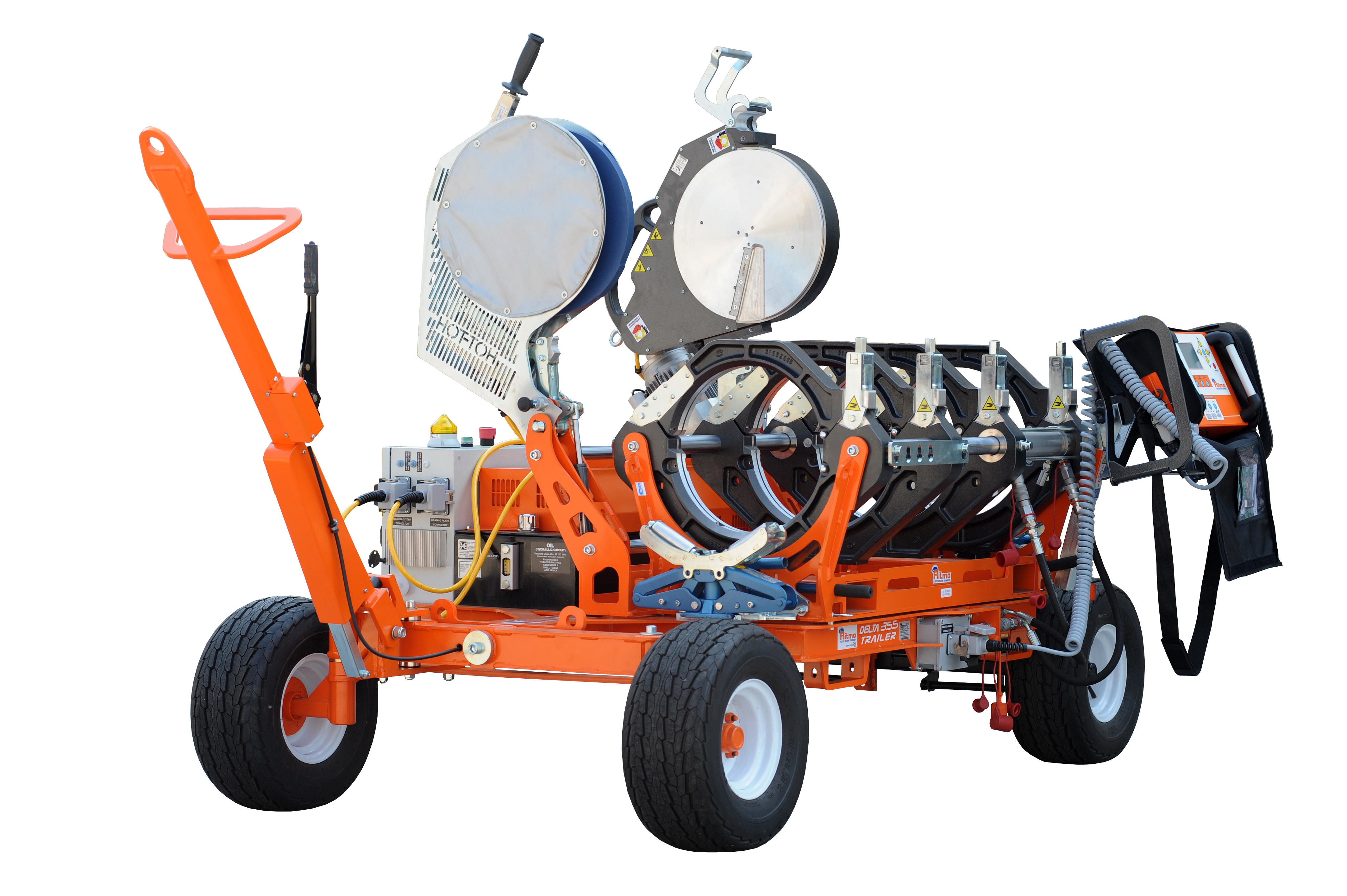

Delta 355 Trailer ( Ø 125 ÷ 355 mm)

Delta 355 Trailer ( Ø 125 ÷ 355 mm)

DELTA 355 TRAILER welds HDPE, PP pipes and fittings for the transportation of gas, water and other fluids from 125 mm to 355 mm under pressure. The machine complies to welding standard ISO 21307 High Pressure.


Product Features:
– Removable control panel with data-logging, memory up to 4000 welding reports, GPS trace-ability; USB port for welding report / data download / firmware upgrade. Easy-life welding control system: hardware and software have been developed to interact to each other sharing data during the entire workflow. Once set the welding parameters up, the system guarantees the repetition of the welding cycle, avoiding errors. The operator only have to confirm the work phases on the just pushing a button. Possibility to pre-set 20 customized
– Chassis is equipped with front steering wheels; parking brake, machine frame design for forklift lifting
– Removable machine body to work in tight spaces with shavings collection tray
– Dragging bar designed to weld between the 3rd and 4th clamp
– Ritmo patented insert quick release SMARTLOCK SYSTEM
– On-board electrical milling cutter with integrated locking handle system, safety switch-off device, motor thermic
protection and gas spring to easily lift/lower the facer
– On-board heating plate with protection frame and insulated protection bag; gas-spring for easy lift/lower the heating plate
– Heating plate and facer locking system for safe transportation
– Two hydraulic rollers used for pipe loading and unloading


Clamps’ inserts from Ø 125 to 315 mm (Master 250 mm); 4″ ÷ 12″ IPS; 4″ ÷ 12 ” DIPS
– Tool for flange necks/stub-end holder
– Inserts’ transportation box
– Data-logging software and cable


Technical features:

Materials  HDPE/PP
Working range  Ø 125 ÷ 355 mm;  4″ IPS ÷ 14″ IPS
Power supply  230 Vac Single Phase 50-60 Hz
Absorbed power  6000 W
Memory  4000 Reports
Report  PDF
Weight body machine  275 Kg
Weight standard composition  755 Kg
Dimension  2110x1600x1335 mm
