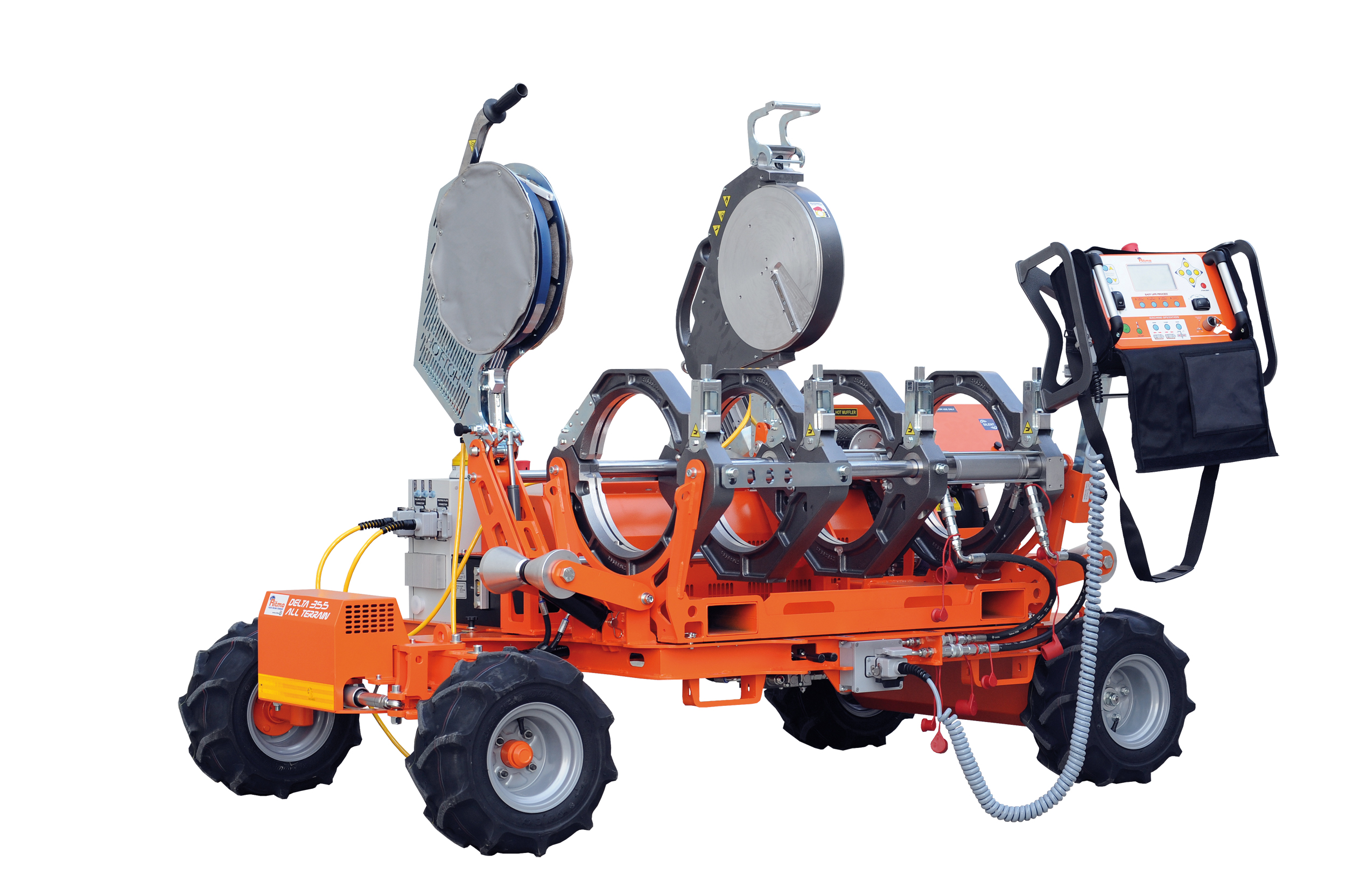

Delta 355 All Terrain (Ø 125 ÷ 355 mm)

Delta 355 All Terrain (Ø 125 ÷ 355 mm)

DELTA 355 ALL TERRAIN welds HDPE, PP pipes and fittings for the transportation of gas, water and other fluids from 125 mm to 355 mm under pressure. This machine complies to welding standard ISO 21307 High Pressure. DELTA 355 ALL TERRAIN can be equipped with two types of engine: diesel low vibration and petrol.

The engine independently gives the necessary power supply to the machine during all its working and movement phases, like an electrical generator.


Product Features:
– Removable control panel with data-logging, memory up to 4000 welding reports, GPS trace-ability; USB port for welding report / data download / firmware upgrade. Easy-life welding control system: hardware and software have been developed to interact to each other sharing data during the entire workflow. Once set the welding parameters up, the system guarantees the repetition of the welding cycle, avoiding errors. The operator only have to confirm the work phases on the just pushing a button.
– Chassis is equipped with front steering wheels and rear traction; parking brake, machine frame design for forklift lifting
– Removable machine body to work in tight spaces with shavings collection tray
– Dragging bar designed to weld between the 3rd and 4th clamp
– Ritmo patented insert quick release SMARTLOCK SYSTEM
– On-board electrical milling cutter with integrated locking handle system, safety switch-off device, motor thermic
protection and gas spring to easily lift/lower the facer
– On-board heating plate with protection frame and insulated protection bag; gas-spring for easy lift/lower the heating plate
– Heating plate and facer locking system for safe transportation
– Two hydraulic rollers for pipe loading and unloading
– Kit for network power supply connection (upon request) excluding the machine engine and weld in closed environments
– 25 lt capacity tank for more than 12 working hours operating time


Clamps’ inserts from Ø 125 to 315 mm (MASTER 250 mm); 4″ ÷ 12″ IPS; 4″ ÷ 12 ” DIPS
– Tool for flange necks/stub-end holder
– Inserts’ transportation box
– Data-logging software and cable


Technical features:

Materials  HDPE/PP
Working range  Ø 125 ÷ 355 mm;  4″ IPS ÷ 14″ IPS
Power supply
self contained /Independent
 diesel engine Kohler – Lombardini 8,6 kW;

gasoline Honda 14,5 kW

Fuel tank capacity  25  Litres
Operational tank
 over 12 Hours
Absorbed power Max  5,6 kW (230 V Single Phase)
it refers to the welding machine use when connected
to network power supply (excluding on-board generator)
Memory  4000 Reports
Weight  755 Kg
Dimension  2110x1600x1335 mm
