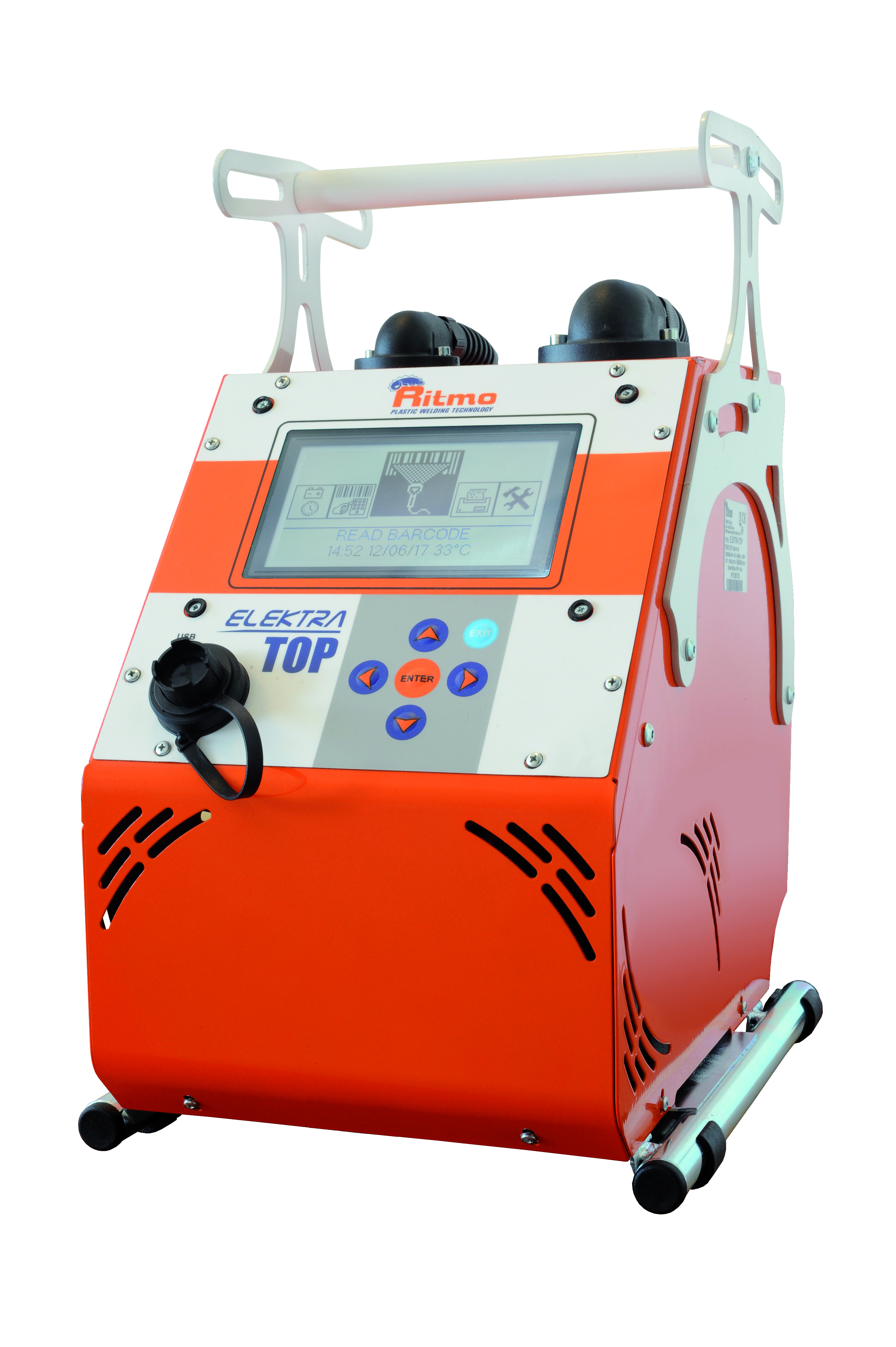

ELEKTRA TOP is a high performance universal electrofusion machine, known for its by its high efficiency and light weight. The machine is suitable to weld HDPE, PP, PP-R couplings (from 8 to 80 V) and has an approximate diameter working range* up to 1600 mm. (½” IPS – 63” IPS)

Steel machine frame containing the newest Ritmo’s electrofusion technology. Safe transportation owing to Elektra Top’s wide handle which allows for a perfect grip and cable winding.

– 4000 welding reports memory.

Welding reports can be downloaded directly in PDF file format, CSV, or BIN (Software Ritmo Transfer required) in to an external pen drive through the machine usb port, which allows also the welder firmware updating, or a printer ESC-POS connection.

– Large graphic display 6,5” LCD.

– Intuitive control panel.

– Universal connectors 90° 4 – 4,7 mm; no need of adapters.

Laser scanner – barcode reading system that enables automatic setting of the welding parameters.

There are two manual settings available: 1) by setting the welding tension/time parameters, 2) by introducing the fitting’s numerical code indicated under the bar code. Traceability function ISO 12176.

– GPS (on request).

Elektra Top is available in 110 V with approximate diameter working range* Ø 20 ÷ 500 mm (½” IPS ÷ 20” IPS)

– Elektra TOP
– Universal adapter Ø 4,0 – 4,7 mm
– Laser scanner
– Transport case
– Manual scraper


Technical features:

Materials HDPE/PP/PP-R
Working range Ø 20 ÷ > 1600 mm (1/2″ IPS ÷ 63″ DIPS
Power supply* 230 V single phase 50/60 Hz
Total abdorbed power (60% Duty Cycle output) 3500 W
Max output current 120 A
Working temperature range -20° +50° C
Memory capacity 4000 reports
Protection degree IP 54
Dimensions 259 x 342 x 428 mm
Dimensions carryng case 480 x 350 x 400 mm
Weight 13,9 Kg
