ELEKTRA 500 (Ø 20 ÷ 500 mm)

ELEKTRA 500 (Ø 20 ÷ 500 mm)

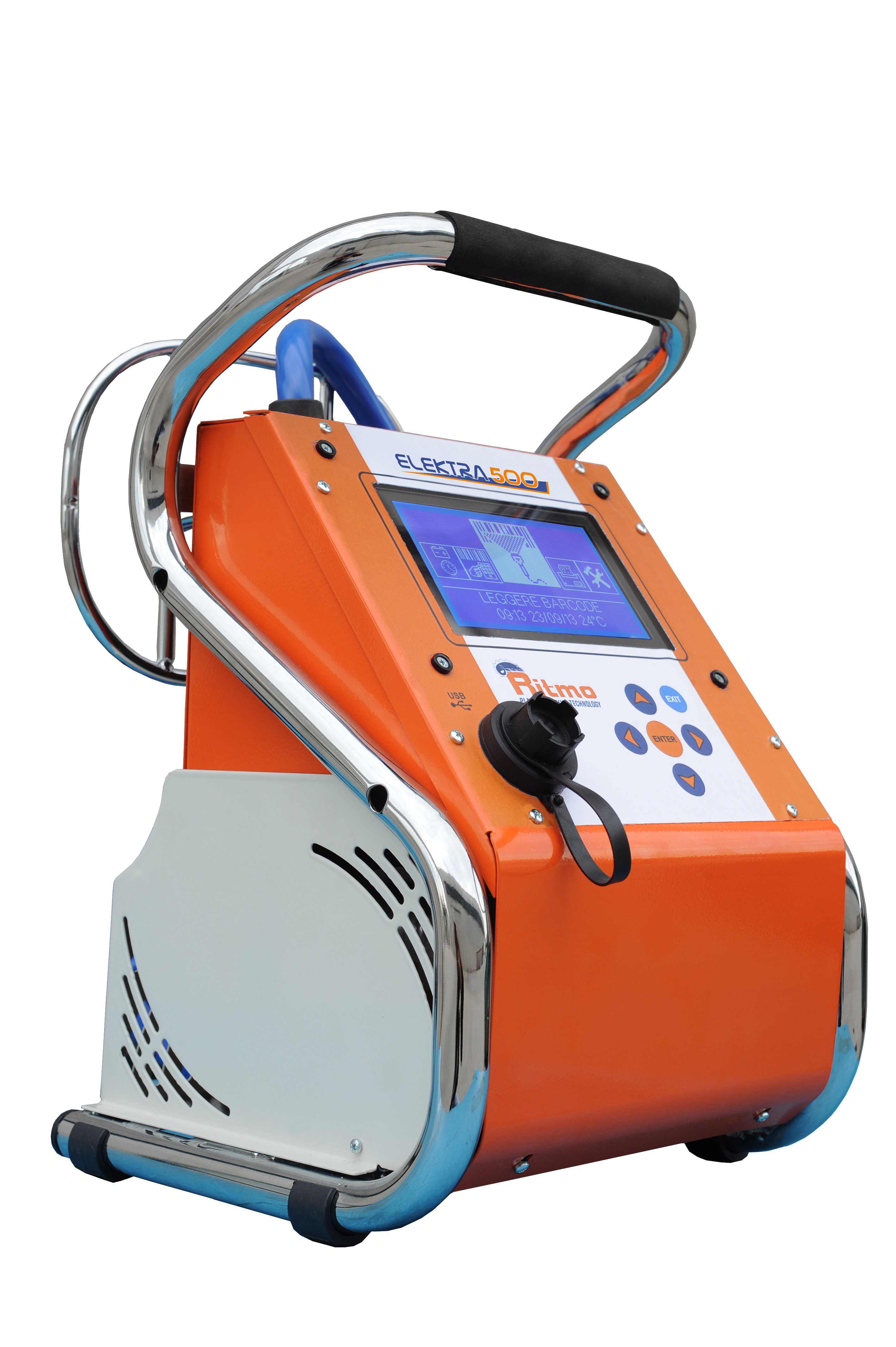

ELEKTRA 500 is an high performance universal electro-fusion machine, used for welding HDPE, PP, PP-R couplings (from 8 to 48 V).



Product features:

– machine body with a tubular steel frame surrounding, that gives it a protective structure adding both to the welding design and functionality. The steel frame serves as transport handle and cable winding

– large graphic display that stands out for the size and resolution of the icons, facilitating reading in the welding stages – intuitive control panel that simplifies and speeds up the setting of the welder

– universal connectors; no need of adapters

– GPS (on request) useful in job sites allowing for traceability

-a laser scanner – barcode reading system that enables automatic setting of the welding parameters.

There are two manual settings available: 1) by setting the welding tension/time parameters, 2) by introducing the numerical code indicated under the bar code, to recognize welding parameters automatically.

– Internal memory of 4000 welds; welding data can be generated in PDF format containing the name of the operator and other selected items . These reports can be downloaded to a PC through a USB port

– USB port allows updating the welder firmware, the reports download or a printer ESC-POS connection

STANDARD COMPOSITION
– Elektra 500
– Universal adapter Ø 4,0 – 4,7 mm
– Laser scanner
– Transport case
– Manual scraper



Technical features:

Materials HDPE/PP/PP-R
Working range Ø 20 ÷ 500 mm
Power supply 110 V single phase 50/60 Hz
230 V single phase 50/60 Hz
Total abdorbed power (60% Duty Cycle) 3100 W
Max output current 100 A (110 V) – 120 A (230 V)
60% Duty Cycle output 70 A
Memory capacity 4000 reports
Protection degree IP 54
Dimensions 255 x 270 x 385 mm
Dimensions carryng case 410 x 290 x 485 mm
Weight 18 Kg
