ELEKTRA 315 is an universal electro-fusion machine, used for welding pipe/fittings for the transport of gas, water and for welding fire sprinkler system (HDPE, PP, PP-R couplings from 8 to 48 V).
The Elektra 315 machine complies to international standards. This is welding machine has a light weight structure, and so is easily transported from one place to another.

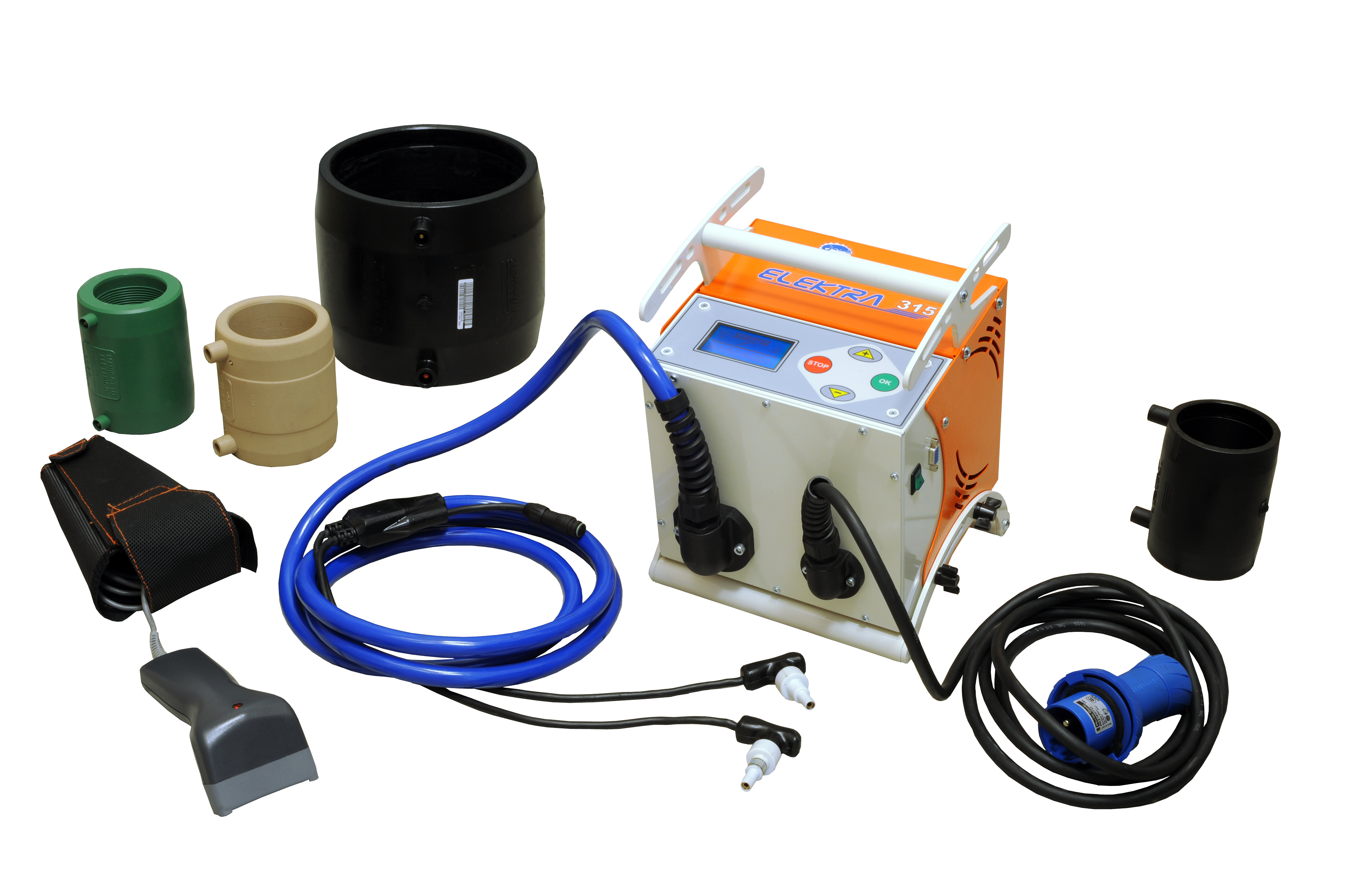

– Machine body
– Built-in memory with 500 welding cycles – report PDF file – featuring the possibility of transferring data to a Pc/Laptop.
– Elektra 315
– Universal adapter Ø 4,0 – 4,7 mm
– Laser scanner
– Carrying case
– Manual scraper
|Working range||Ø 20 ÷ 315 mm|
|Power supply||110 V single phase 50/60 Hz
230 V single phase 50/60 Hz
|Total abdorbed power||2600 W|
|Max output current||100 A|
|60% Duty Cycle output||23 A|
|Memory capacity||500 reports|
|Protection degree||IP 54|
|Dimensions machine body||263 x 240 x 300 mm|
|Dimensions transport case||405 x 285 x 340 mm|
