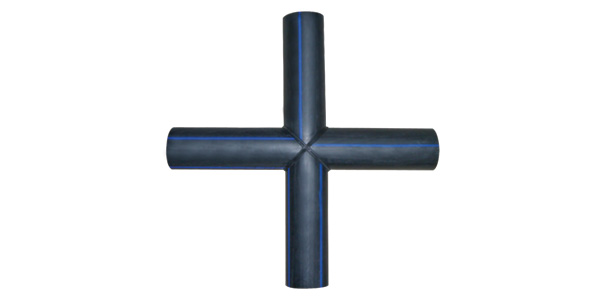

Cross

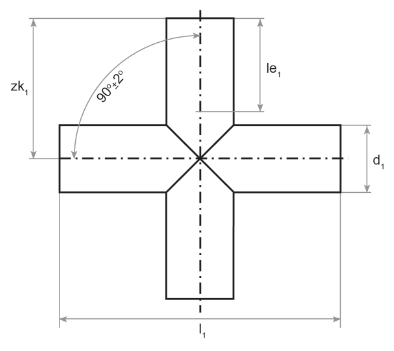

Dimensions according to DIN 16963/2

d1(mm) le1(mm) l1(mm) zk1(mm)
110 150 410 205
125 150 430 215
140 150 440 220
160 150 460 230
180 150 480 240
200 150 500 250
225 150 530 265
250 250 750 375
280 250 780 390
315 300 920 460
355 300 960 480
400 300 1000 500
450 300 1050 525
500 350 1200 600
560 350 1260 630
630 350 1330 665
710 350 1410 705
800 350 1500 750

*All SDR are available
