HDPE FITTINGS PE100 Injection Fittings

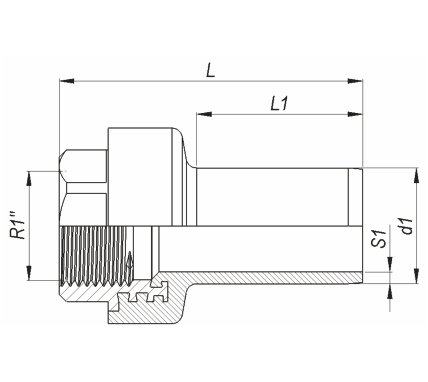

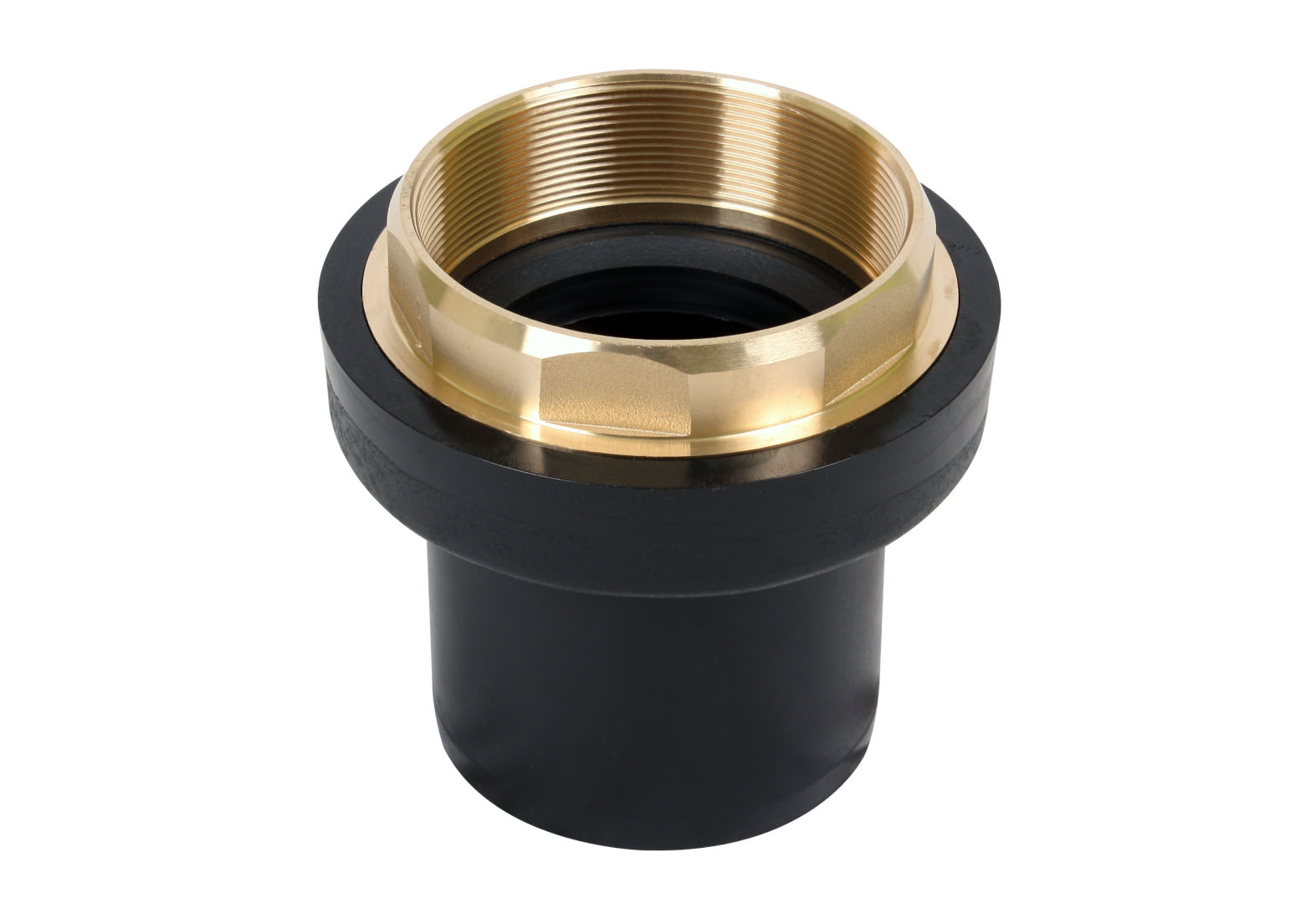

PE BRASS TRANSITION FEMALE (for water)
| D1 (MM) |
R1 (INCH) |
ARTICLE NO | L (MM) |
L2 (MM) |
S1 (MM) |
WEIGHT (KG) |
BOX (PCS) |
|---|---|---|---|---|---|---|---|
| 20 | 1/2″ | 01 117 200 0020 | 72 | 41 | 3,0 | 0,066 | 100 |
| 25 | 3/4″ | 01 117 200 0025 | 72 | 41 | 3,0 | 0,109 | 98 |
| 32 | 1″ | 01 117 200 0032 | 84 | 44 | 3,0 | 0,157 | 48 |
| 40 | 1 1/4″ | 01 117 200 0040 | 98 | 49 | 3,7 | 0,347 | 18 |
| 50 | 1 1/2″ | 01 117 200 0050 | 101 | 55 | 4,6 | 0,380 | 18 |
| 63 | 2″ | 01 117 200 0063 | 115 | 63 | 5,8 | 0,574 | 16 |
| 75 | 2 1/2″ | 01 117 200 0075 | 129 | 70 | 6,8 | 10,841 | 9 |
| 90 | 3″ | 01 117 200 0090 | 144 | 79 | 8,2 | 1,513 | 5 |
| 110 | 4″ | 01 117 200 0110 | 147 | 82 | 10,0 | 1,691 | 4 |
| 125 | 4″ | 01 117 200 0125 | 153 | 87 | 11,4 | 1,755 | 2 |
