Y – Branch 45°

HDPE FITTINGS HDPE Special Drainage Fittings Y – Branch 45°

5393097d0be569034920770c_slideshow52.jpg 539308be93bd56e12725c37c_slideshow4.jpg

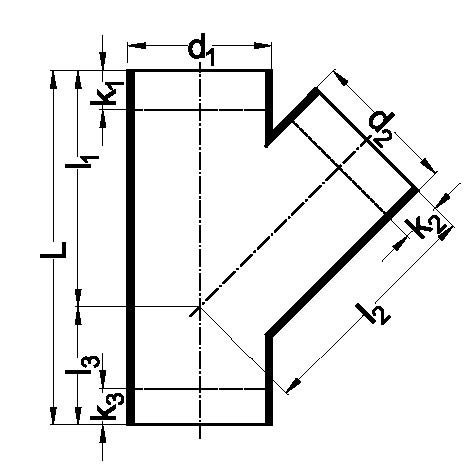

Y - Branch 45°



Y-branch 45°
Code d1/ d2 L l1/l2 l3 k1
30 04 04 40 40 135 90 45 30
30 05 04 50 40 165 110 55 45
30 05 05 50 50 165 110 55 20
30 56 04 56 40 180 120 60 35
30 56 05 56 50 180 120 60 30
30 56 56 56 56 180 120 60 25
30 06 04 63 40 195 130 65 40
30 06 05 63 50 195 130 65 30
30 06 56 63 56 195 130 65 25
30 06 06 63 63 195 130 65 20
30 07 04 75 40 210 140 70 60
30 07 05 75 50 210 140 70 40
30 07 56 75 56 210 140 70 35
30 07 06 75 63 210 140 70 35
30 07 07 75 75 210 140 70 25
30 09 04 90 40 240 160 80 65
30 09 05 90 50 240 160 80 50
30 09 56 90 56 240 160 80 45
30 09 06 90 63 240 160 80 40
30 09 07 90 75 240 160 80 35
30 09 09 90 90 240 160 80 20
30 11 04 110 40 270 180 90 75
30 11 05 110 50 270 180 90 55
30 11 56 110 56 270 180 90 45
30 11 06 110 63 270 180 90 40
30 11 07 110 75 270 180 90 35
30 11 09 110 90 270 180 90 30
30 11 11 110 110 270 180 90 20
30 12 04 125 40 300 200 100 115
30 12 05 125 50 300 200 100 115
30 12 56 125 56 300 200 100 110
30 12 06 125 63 300 200 100 60
30 12 07 125 75 300 200 100 50
30 12 09 125 90 300 200 100 35
30 12 11 125 110 300 200 100 25
30 12 12 125 125 300 200 100 20
30 16 05 160 50 fabricated 375 250 125 120
30 16 56 160 56 fabricated 375 250 125 120
30 16 06 160 63 fabricated 375 250 125 120
30 16 07 160 75 375 250 125 120
30 16 09 160 90 375 250 125 110
30 16 11 160 110 375 250 125 50
30 16 12 160 125 375 250 125 10
30 16 16 160 160 375 250 125 10
30 20 05 200 50 fabricated from branch 200/75 mm with concentric reducer 540 360 180 95
30 20 56 200 56 fabricated from branch 200/75 mm with concentric reducer 540 360 180 95
30 20 06 200 63 fabricated from branch 200/75 mm with concentric reducer 540 360 180 95
30 20 07 200 75 wall thickness e according to S12,5 540 360 180 95
30 20 09 200 90 wall thickness e according to S12,5 540 360 180 80
30 20 11 200 110 wall thickness e according to S12,5 540 360 180 65
30 20 12 200 125 wall thickness e according to S12,5 540 360 180 55
30 20 16 200 160 wall thickness e according to S12,5 540 360 180 35
30 20 20 200 200 wall thickness e according to S12,5 555 375 180 0
30 25 07 250 75 fabricated 660 440 220 170
30 25 09 250 90 fabricated 660 440 220 160
30 25 11 250 110 fabricated 660 440 220 150
30 25 12 250 125 fabricated 660 440 220 140
30 25 16 250 160 fabricated 660 440 220 120
30 25 20 250 200 fabricated 660 440 220 90
30 25 25 250 250 fabricated 900 600 300 160
30 31 07 315 75 fabricated 840 560 280 255
30 31 09 315 90 fabricated 840 560 280 245
30 31 11 315 110 fabricated 840 560 280 235
30 31 12 315 125 fabricated 840 560 280 220
30 31 16 315 160 fabricated 840 560 280 200
30 31 20 315 200 fabricated 840 560 280 175
30 31 25 315 250 fabricated 840 560 280 140
30 31 31 315 315 fabricated 950 610 340 170
