Stack – Aerator

Stack - Aerator

The stack-aerator is delivered with closed caps. After removing the caps, the required horizontal branches can be butt-welded directly to the Stack-aerator.

The horizontal branches can also be connected using plug-in sockets butt-welded to the stack-aerator. Plug-in sockets allow for easy assembly on-site and enable a transition from 110 mm dBlue for acoustic horizontal drainage or a standard uPVC 110 mm branch. Using snap-sockets a pull-tight connection can be created.

An expansion socket on every level is mandatory to absorb any pipe expansion and have a tension-free stack-aerator. Inspection openings should be installed according to local regulation, we advise one on every level.

Stack – Aerator

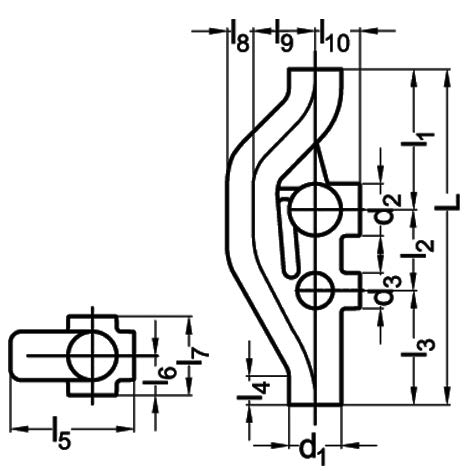

Code d1 d2 d3 L l1 l2

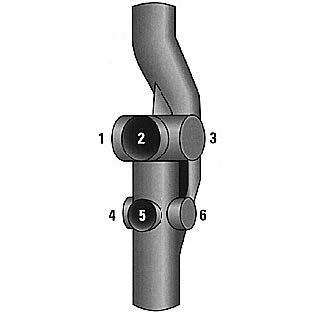

60 11 17 110 110 1/2/3 = max. Ø 110 mm – 4/5/6 = max. Ø 75 mm@butt-weld only 75 705 295 170
60 16 17 160 110 <voetnoot>1/2/3 = max. Ø 110 mm – 4/5/6 = max. Ø 75 mm@butt-weld only 75 750 330 170
