HDPE FITTINGS HDPE Special Drainage Fittings

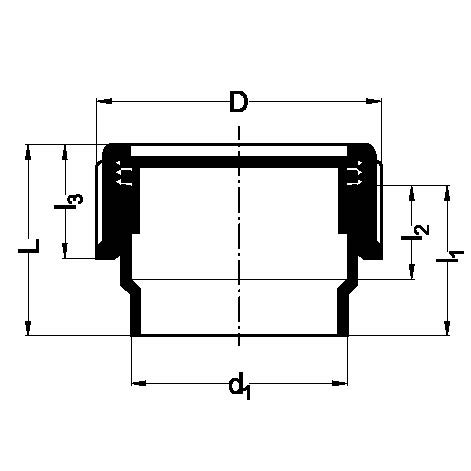

Screw Coupler Short
|
Screw Coupler Short
|
|||||||
| Code | d1 | D | L | l1 | l2 | I3 | |
| 43 04 30 | 40 | butt-weld only | 66 | 71 | 56 | 32 | 33 |
| 43 05 30 | 50 | butt-weld only | 76 | 71 | 56 | 32 | 33 |
| 43 56 30 | 56 | butt-weld only | 82 | 71 | 56 | 32 | 35 |
| 43 06 30 | 63 | butt-weld only | 89 | 76 | 61 | 37 | 42 |
| 43 07 30 | 75 | butt-weld only | 103 | 81 | 65 | 37 | 44 |
| 43 09 30 | 90 | butt-weld only | 122 | 92 | 75 | 45 | 48 |
| 43 11 30 | 110 | butt-weld only | 148 | 97 | 80 | 49 | 62 |
