HDPE FITTINGS HDPE Special Drainage Fittings

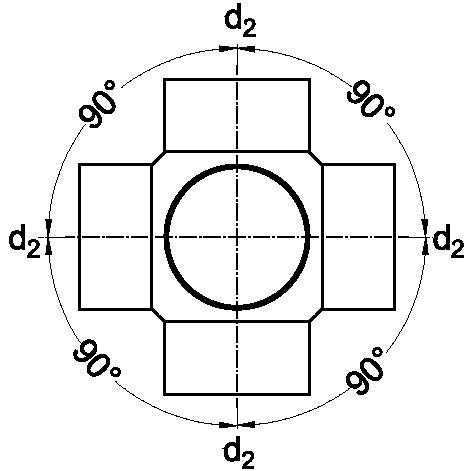

Fourfold Ball Branch 88,5° – 90°
Fabricated – 90°.
Fourfold ball branches can be applied in soil and waste stacks.

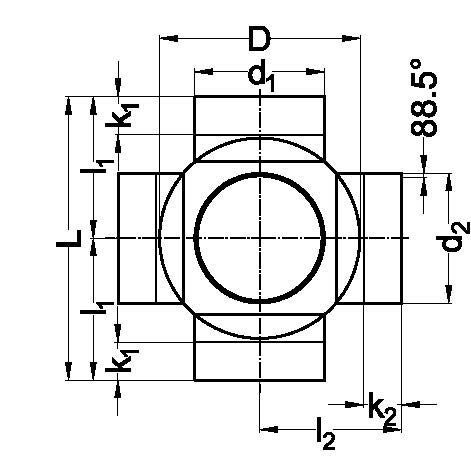

| Fourfold ball branch 88,5° – 90° | Fabricated | |||||
| Code | d1 | d2 | L | l1 | l2 | D |
| 44 11 14 | 110 | 50 | 275 | 135 | 140 | 170 |
| 44 11 15 | 110 | 56 | 275 | 135 | 140 | 170 |
| 44 11 16 | 110 | 63 | 275 | 135 | 140 | 170 |
| 44 11 17 | 110 | 75 | 275 | 135 | 140 | 170 |
| 44 11 19 | 110 | 90 | 275 | 135 | 140 | 170 |
| 44 11 01 | 110 | 110 | 275 | 135 | 140 | 170 |
| 44 12 14 | 125 | 50 | 260 | 130 | 145 | 190 |
| 44 12 15 | 125 | 56 | 260 | 130 | 145 | 190 |
| 44 12 17 | 125 | 75 | 260 | 130 | 145 | 190 |
| 44 12 01 | 125 | 110 | 260 | 130 | 125 | 190 |
| 44 12 12 | 125 | 125 | 260 | 130 | 125 | 190 |
