| End cap | ||||||

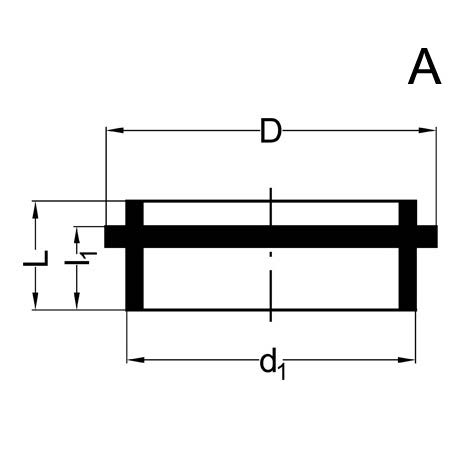

| Code | d1 | Type | L | D | l1 | |
| 67 04 07 | 40 | butt-weld only | A | 15 | 46 | 11 |
| 67 05 07 | 50 | butt-weld only | A | 16 | 57 | 12 |
| 67 56 07 | 56 | butt-weld only | A | 16 | 64 | 12 |
| 67 06 07 | 63 | butt-weld only | A | 18 | 71 | 14 |
| 67 07 07 | 75 | butt-weld only | A | 21 | 85 | 16 |
| 67 09 07 | 90 | butt-weld only | A | 19 | 100 | 19 |
| 67 11 07 | 110 | butt-weld only | A | 19 | 120 | 19 |
| 67 12 09 | 125 | butt-weld only | B | 35 | ||
| 67 16 09 | 160 | butt-weld only | B | 45 | ||
| 67 20 09 | 200 | butt-weld only | B | 55 | ||
| 67 25 09 | 250 | butt-weld only | B | 30 | ||
| 67 31 09 | 315 | butt-weld only | B | 30 | ||
