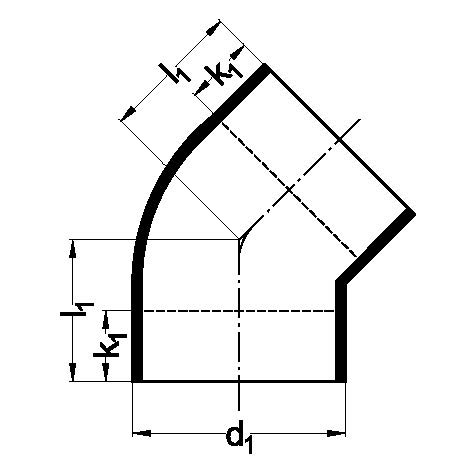

Elbow 45°

Elbow 45°
Code	d1		l1	k1
12 04 45	40		40	20
12 05 45	50		45	20
12 56 45	56		45	20
12 06 45	63		50	20
12 07 45	75		50	20
12 09 45	90		55	20
12 11 45	110		60	25
12 12 45	125		65	25
12 16 45	160		69	20
12 20 45	200		173	60
12 25 45	250	wall thickness e according to S12,5	182	60
12 31 45	315	wall thickness e according to S12,5	195	60
