HDPE FITTINGS HDPE Special Drainage Fittings
Elbow 45° With Long Side

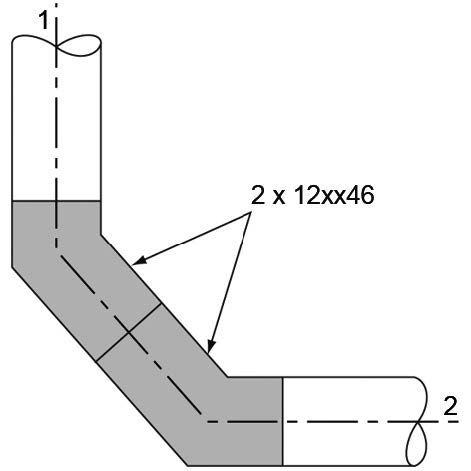

Elbows 45° with long side are applied for making the transition from stack to building drain acc. to EN 12056 (see drawing).
1 – stack.
2 – building drain.

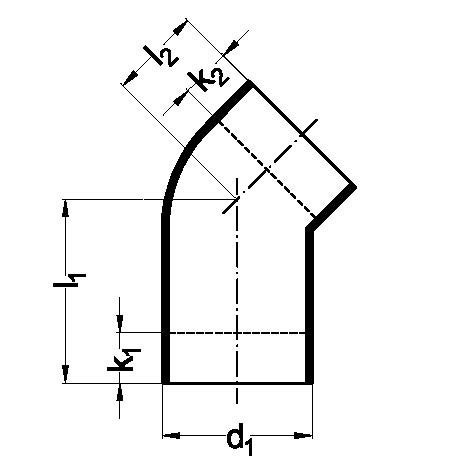

| Elbow 45° With Long Side | |||||
| Code | d1 | l1 | l2 | k1 | k2 |
| 12 07 46 | 75 | 145 | 50 | 120 | 25 |
| 12 09 46 | 90 | 150 | 55 | 120 | 25 |
| 12 11 46 | 110 | 147 | 60 | 120 | 25 |
