Double Wall – Lavatory bend 90° ( vertical )

HDPE FITTINGS HDPE Special Drainage Fittings Double Wall – Lavatory bend 90° ( vertical )

5393097d0be569034920770c_slideshow52.jpg 539308be93bd56e12725c37c_slideshow4.jpg

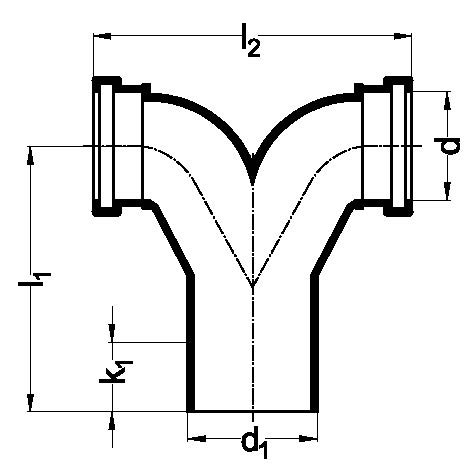

Double Wall - Lavatory Bend 90° ( Vertical ) With protection Plug



Double Wall – Lavatory Bend 90° ( Vertical )
Code d1 d l1 l2 k1
50 09 34 110 90 EPDM O-ring 225 275 80
50 11 34 110 110 NBR O-ring 185 270 60
