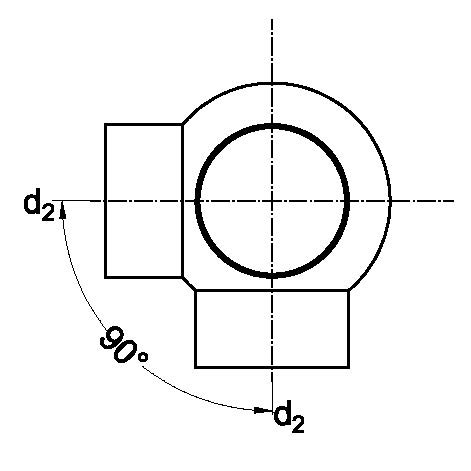

Double Ball Branch 88,5° - 90°

Fabricated – 90°.

Double ball branches can be applied in soil and waste stacks.

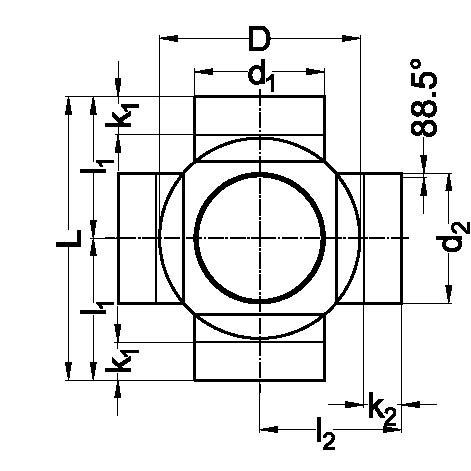

Double Ball Branch 88,5° – 90°
Code d1/ d2 L l1 l2 D
24 11 14 110 50 275 135 140 170
24 11 15 110 56 275 135 140 170
24 11 16 110 63 275 135 140 170
24 11 17 110 75 275 135 140 170
24 11 19 110 90 275 135 140 170
24 11 01 110 110 275 135 140 170
24 12 14 125 50 260 130 145 190
24 12 15 125 56 260 130 145 190
24 12 17 125 75 260 130 145 190
24 12 01 125 110 260 130 125 190
24 12 12 125 125 260 130 125 190
