Contraction Socket

Contraction Socket

DX = Connecting Range

Contraction sockets are applied for jointing PE to concrete, clayware, copper, stainless steel etc. (see drawing).

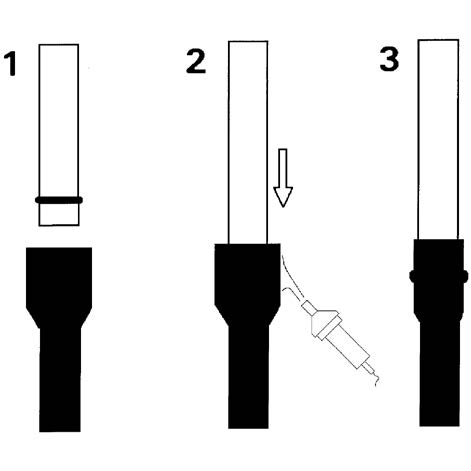

1 – Slip the seal over the pipe end.

2 – Then slide the retraction socket over the pipe end with seal and heat it with for instance hot air.

3 – The socket will shrink and fit over the pipe end.

Contraction Socket

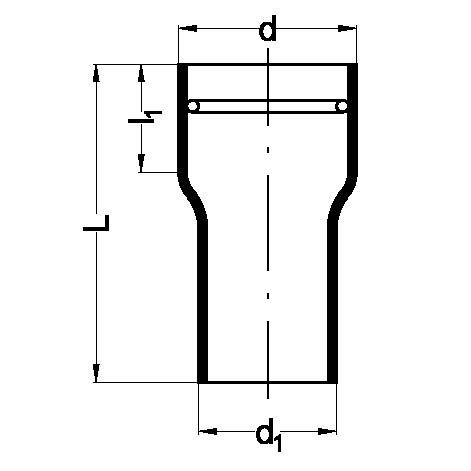

Code d1 d L l1 dx
55 04 01 40 50 210 65 41-44
55 04 02 40 70 210 65 57-64
55 05 03 50 70 210 65 57-64
55 05 04 50 80 210 60 67-74
55 56 01 56 75 210 70 62-69
55 06 01 63 75 210 70 62-69
55 06 03 63 85 210 70 75-79
55 07 01 75 90 210 75 80-84
55 07 02 75 100 210 75 90-94
55 09 02 90 110 210 75 94-98
55 11 02 110 125 210 100 102-111
55 11 03 110 135 210 100 110-120
55 11 04 110 150 210 90 115-136
55 12 01 125 155 210 85 120-140
55 12 02 125 170 210 85 135-155
55 16 02 160 180 220 90 155-165
55 16 04 160 195 220 90 160-180
55 20 01 200 225 300 150 185-207
55 25 01 250 280 300 150 236-260
