Clean Out Branch 90°

Clean out branches 90° can be applied in horizontal and vertical pipes.

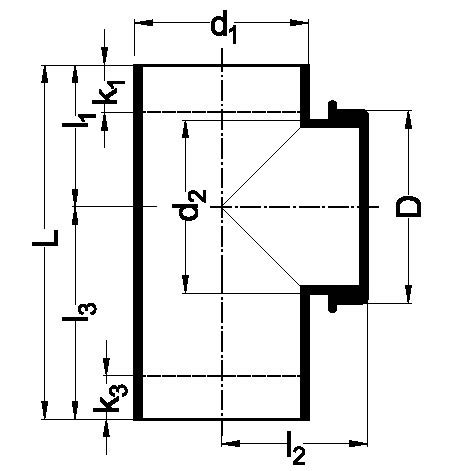

Clean out branch 90°
Code d1/ d2 D L l1 l2
23 04 00 40 40 64 130 55 80
23 05 00 50 50 72 150 60 72
23 56 00 56 56 83 175 70 100
23 06 00 63 63 87 175 70 100
23 07 00 75 75 91 175 70 100
23 09 00 90 90 118 200 80 100
23 11 20 110 110 127 225 90 105
23 12 00 125 110 140 250 100 123
23 16 00 160 110 140 350 140 140
23 20 00 200 110 140 360 180 160
23 25 00 250 110 140 440 220 185
23 31 00 315 110 140 560 280 220
