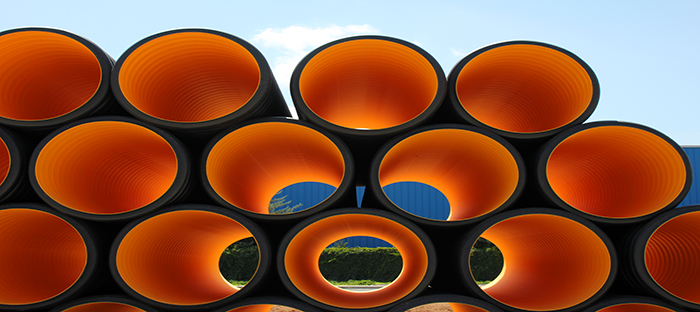

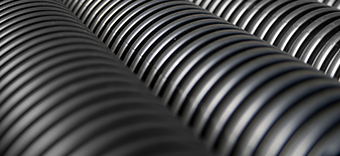

Double Wall Corrugeted

Double Wall Corrugeted

Spiral Pipe

Spiral Pipe

Underground (Main Line)

We offer you two profile pipes, HDPE double wall corrugated and HDPE Spiral pipe. The main application areas for these products are used in transporting liquids by gravity such as:

  1. Sewage system.
  2. Rain drainage system.
  3. Efficient water transportation system.
  4. Industrial waste water system.

STRUCTURAL DESIGN

  • The first thing to do when dealing with sewer pipes is to distinguish between rigid pipes and flexible pipes.
  • Rigid pipes are pipes whose ring section cannot undergo horizontal or vertical deflection without the pipe being damaged.
  • However, flexible pipes are pipes where an external stress may cause deflection of the ring section >3% without damages.
  • The deflection, whether on a short or a long term, can reach higher values without damages or signs of failure on the pipe structure.
  • The key parameter of flexible pipes is ring stiffness, which depends on both geometrical fat (moment of inertia of the wall) and on the characteristics of the material (module of the elasticity).

Screen Shot 2014-07-16 at 4.40.01 PM


Chemical And Wear Resistance

To ensure highest quality and longest lifespan of the pipes, it is of high priority to attain high chemical and wear resistance as presented In the graph (above/below).

graph

Chemical and Wear Resistance PDF Table.
