Basic 160 Easy Life

Products HDPE Welding Machines CNC and Semi CNC Basic 160 Easy Life

Basic 160 Easy Life

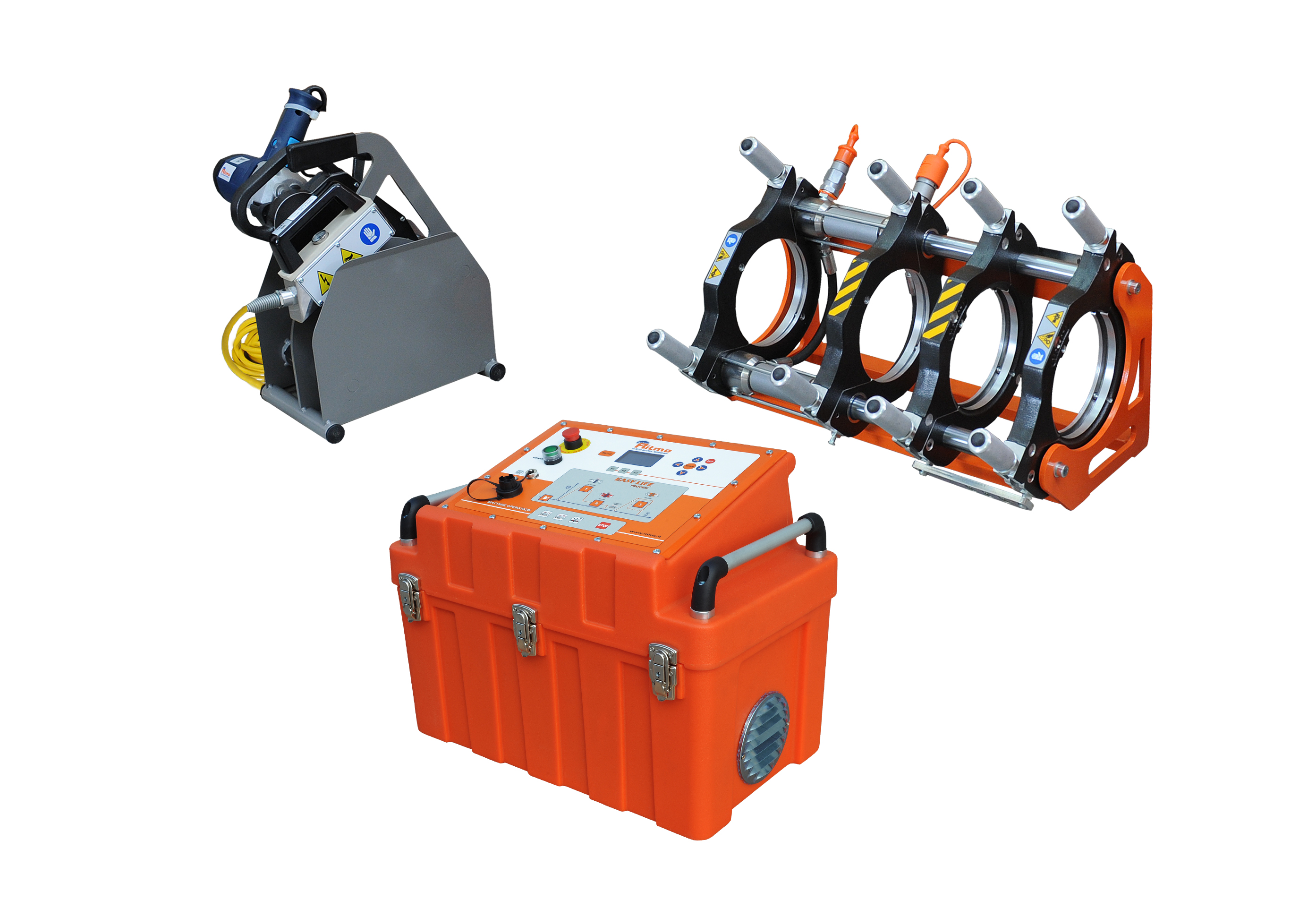

Product Features:
– A machine body with 4 clamps and 2 hydraulic cylinders with fast non-drip couplings
– A heating plate that can be extracted
– A milling cutter, with safety micro-switch, that can be extracted
– An electro-hydraulic gear case EASY LIFE
– A hydraulic hoses with non – drip quick couplings
– Adapters from Ø 40 to 140 mm



Technical features:

Materials HDPE – PP – PB – PVDF
Working range Ø 40 ÷ 160 mm
Power supply 230 VAC 50/60 Hz
Total absorbed power 2250 W
Gearcase 1100 W
Report 4000 welding cycles
Working temperature 180° ÷ 280° C
Pressure working range 0 ÷ 150 bar
Weight only body machines 21 Kg
Weight gearcase 37 Kg
Dimension machine 606x365x375 mm
Dimension gearcase 585x384x463 mm
